GSM Roofing Project Profile: F&M College Multi-Purpose Stadium, Lancaster, PA
New Construction Field House Roofing Project
Location: F&M College Multi-Purpose Stadium, Lancaster, PA
Project Overview
GSM Roofing recently completed a challenging new construction project at the F&M College Multi-Purpose Stadium. This extensive project involved multiple specialized tasks:
Grace Prepufe 300R Under-slab Elevator Pit Waterproofing

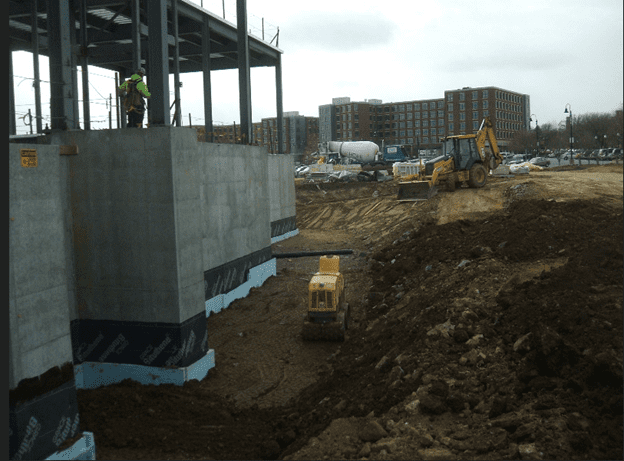

Grace Bituthene 3000-LT Below Grade Wall Waterproofing: Including prime peel and stick, drainage board, and 2-inch 25-psi DOW insulation.

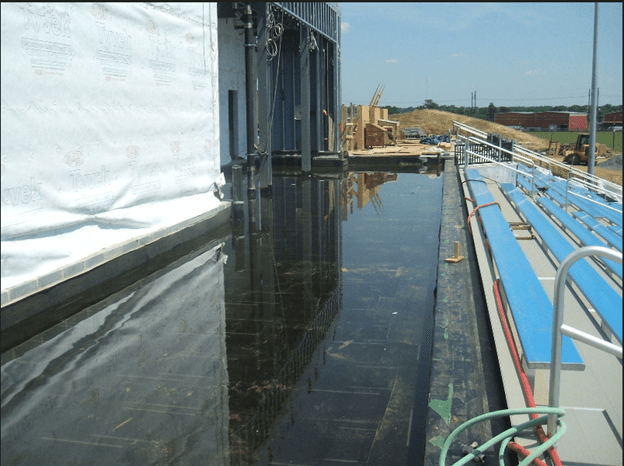

American Hydrotech MM6125 Hot Melt Monolithic Waterproofing: Waterproofing structural concrete slab, EFVM and 24-hour water flood test, HydroDrain Al, 6 inches of 60-psi PlazaMate insulation, and 4-inch concrete topping slab.

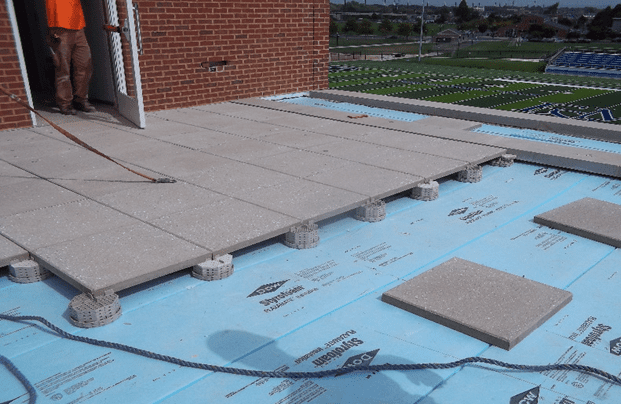

American Hydrotech MM6125 Hot Melt Plaza Roofs: Similar to the above without HydroDrain, finished with pedestal and pavers.

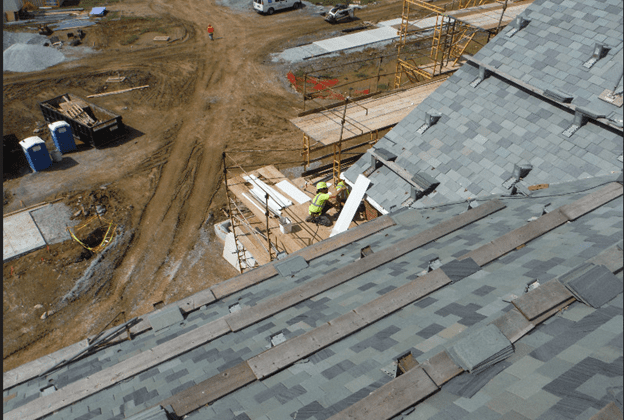

Virginia Slate Roofing: Random 4-color slate roofing with copper gutters, custom fascia, and soffits.

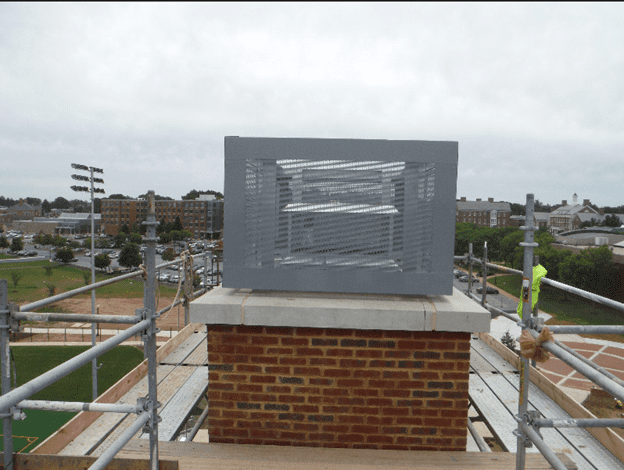

Change Orders: Three custom-designed stainless steel caps.
Key Challenges
New construction projects inherently come with challenges, and this project was no exception. Key issues included:
General Contractor Schedule: Delays and rescheduling impacted milestones and production.
Site Constraints: The compact job site limited available space for work.
Structural Delays: Missing structural steel supports delayed the project by months, causing significant disruptions and additional costs.

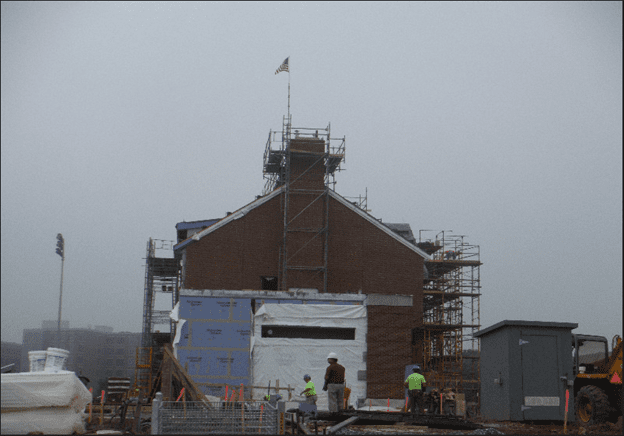

Weather Impact: Scaffolding had to be moved multiple times, disrupting the sequence of work and complicating the slate roof installation.
GSM Roofing’s Solutions
GSM Roofing tackled these challenges head-on with dedication and strategic planning:
Proactive Planning: Frequent site visits and detailed planning sessions helped address unforeseen issues.
Adaptive Solutions: Designed and drafted detailed solutions for the unknowns, ensuring flexibility and adaptability.
Collaborative Efforts: Participated in extensive planning meetings with all contractors to overcome the scheduling challenges and meet critical deadlines.
Project Statistics
Slate Roofing: Installed over 10,000 slate tiles in four distinct colors.
Waterproofing: Applied over 5,000 square feet of Grace Bituthene and American Hydrotech waterproofing systems.

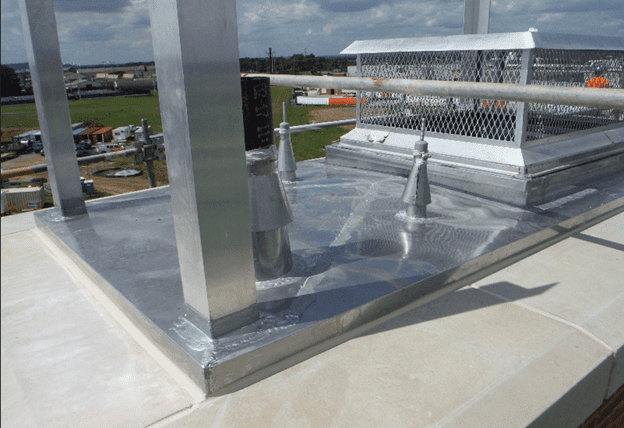

Custom Sheet Metal: Fabricated and installed custom stainless steel caps and copper gutters.
Why GSM Roofing Was the Perfect Fit
This project exemplified GSM Roofing’s core values and expertise in handling dirty, dangerous, and difficult jobs. The steep slope, the use of 400° rubberized asphalt, and the specialty custom sheet metal work were all well within our capabilities. Our experienced team, known for exceptional quality and safety standards, ensured the successful completion of this challenging project.
